10kw Off Grid Solar Power System

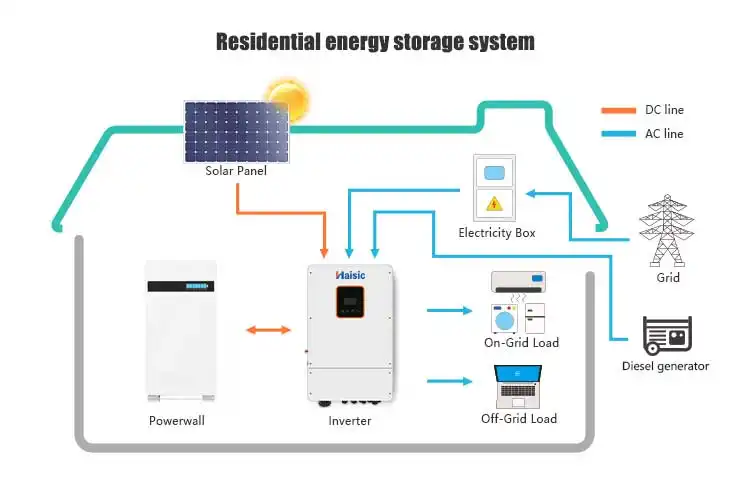

※ The entire system includes 10kWh wall-mounted battery, 8kVa hybrid inverter, 425W solar panels, mounting brackets, and connection accessories
※ Provide remote guidance services and system design services according to your own needs
※ The whole system is simple and easy to install
※ 5 years warranty
| Rated Capacity | 10kWh |
|---|---|
| Battery Voltage | 51.2V |
| Inverter Rated power | 8kVa |
| Inverter Rated output voltage | 220V/230V/240V |
| Inverter Rated frequency | 50/60Hz |
| Solar panel power | 425W |
Product successfully added to the quotation
10kw Off Grid Solar Power System Description
Complete Set Solar Panel Power System 10kw Off Grid Solar Power System With Off Gird Inverter
Easy Installation and Complete Set Solar Panel Power System
Looking for an easy-to-install solar panel power system that can provide energy for your home or business?
Look no further than our 10kw off grid solar power system.
Our complete set solar panel power system includes everything you need for ground installation,
including a tilt mount solar ground system and a BIPV mounting system for maximum ease of use.
With the plug-and-play design, you’ll be up and running in no time, ready to start producing your own clean, renewable energy.
| Battery Basic Parameter | |
| Rated Voltage (v) | 51.2 |
| Rated Capacity (Ah) | 200 |
| Rated Energy (Wh) | 10240 |
| Operation Parameter | |
| Voltage Range (v) | 44.8-56 |
| Charge Voltage Range (V) | 55.2-56 |
| Cut-off Voltage (V) | 44.8 |
| Recommend Charge Current (A) | 100 |
| Max Charge Current (A) | 200 |
| Max Discharge Current (A) | 200 |
| Physical Parameter | |
| Dimension: LW*H (mm) | 457*163*760 |
| Weight (kg) | 70 |
| Communication Port | RS485、CAN |
| Display | LED+LCD |
| Terminal | Plug-in |
| Compatible inverter | Growatt,Goodwe, Sol-Ark, SRNE,DEYE |
| Environment Parameter | |
| Humidity (%) | 5-95% RH |
| Charge Temperature Range (℃ ) | 0-45 |
| Discharge Temperature Range (℃ ) | -20-60 |
| Storage Temperature Range (℃ ) | -20-45 |
| Service Life | |
| Cycle Life | >6000 (0.5C@ 25C，80% DOD) |
| Design Life (Year) | 15 |
| Certification | |
| Safety & Certification | CE，EMC，TUV (IEC62619)，UL1973 |
| Transportation | UN38.3 |
High-Quality Components
Our solar panel power system is made with top-of-the-line components, including a MPPT controller and high-efficiency monocrystalline silicon solar panels.
The lithium ion battery has a rated capacity of 200Ah and can store up to 10KWh of energy, providing reliable power for your home or business.
Our solar power system also comes with a pure sine wave output voltage waveform, ensuring stable and reliable electricity supply.
| Solar inverter parameter | |
|
Input (PV)
|
|
|
Max.power(kW)
|
12 |
|
Max. DC voltage(V)
|
500 |
|
MPPT voltage range()
|
120-500 |
| Max.input current of single MPPT(A) | 12 |
| MAX short circuit current(A) | 15 |
| AC output | |
| Rated output power(kVA) | 8 |
| Max. output power(kVA) | 8.8 |
| Ac output voltage(V) | 220,230,240 |
| Frequency (Hz) | 50/60 (45 – 55,55 – 65) |
| PF | 0.8lagging-0.8leading |
| THDi | < 2% |
| Max. output current(A) | 38.3 |
| Battery | |
| Nominal voltage (V) | 48 |
| Battery voltage range(V) | 40~60 |
| Max. charge/discharge current(A) | 190/190 |
| Battery type | lithium /Lead-acid |
| Charging strategy for Li-lon battery | Self-adaption to BMS |
| EPS output | |
| Rated power (kVA) | 8 |
| Rated output voltage(V) | |
| Rated frequency (Hz) | |
| THDu | |
| Protection | |
| Grounding detection | YES |
| Arc fault protection | optional |
| lsland protection | YES |
| Battery reverse polarity | YES |
| Insulation resistor detection | YES |
| Residual current monitoring unit | YES |
| Output over current protection | YES |
| Back-up output short protection | YES |
| Terminal temperature detection | YES |
| Output over voltage/under voltage protection | YES |
| General data | |
| Europe efficiency (PV) | 97.8% |
| MAX. battery to load efficiency | 97.2% |
| Ingress protection | IP65 |
| Noise emission(dB) | <38 |
| Operation temperature | -25C-60%C |
| Cooling | FAN Cooling |
| Relative humidity | 0 -95% (non-condensing) |
| Dimensions W D*H (mm) | 430*220*710 |
| Weight(kg) | 41 |
| Communication with BMS/meter/EMS | RS485，CAN |
| Display | LCD，Touch panel (optinal) |
| Communication interface | RS485,WLAN,4G (optional) |
| Self-consumption at night | < 2.5 W (with battery enabling < 5 W) |
| Certificates | South Africa NRS,IEC 62109-1/-2IEC 61000-6-1. IEC 61000-6-3 |
Pre-Sales Project Design and 5-Year Warranty
Our team of experts provides pre-sales project design services to ensure the solar power system is perfectly tailored to your specific needs.
With our comprehensive 5-year warranty, you can trust our products to provide reliable performance for years to come.
Place of Origin: Guangdong, China
Looking for a reliable and easy-to-install solar panel power system?
Our Complete Set Solar Panel Power System 10kw Off Grid Solar Power System With Off Gird Inverter is the perfect solution for your home or business.
Our ground installation tilt mount solar ground system and BIPV mounting system make installation a breeze, while our high-quality components,
including a MPPT controller and monocrystalline silicon solar panels, ensure reliable performance. With our Pure sine wave output voltage waveform,
you can enjoy stable and reliable electricity supply. Our pre-sales project design services and 5-year warranty guarantee your satisfaction.
Choose Haisic and start producing your own clean, renewable energy today!
